Spherical Mirrors

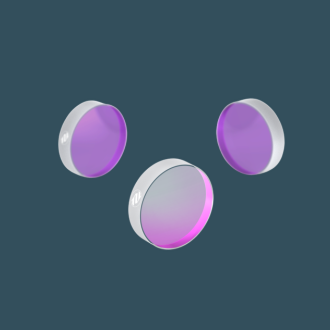

IBS-coated curved mirrors for focusing, collimating or redirecting a beam, with high reflectivity, high LIDT and minimal scattering for high-power systems. We cut concave (negative ROC) for aberration-free focusing and convex (positive ROC) for wider fields of view – beam quality holds up either way, under high power and over the long run.
Capabilities
| Coating technology | Ion Beam Sputtering (IBS) |
|---|---|
| Spectral range | 193 – 5000 nm |
| Reflectivity | > 99% |
| Substrate diameter | 3 – 500 mm |
| Surface flatness | Up to <λ/20 |
| Surface quality | Up to 10-5 S-D over CA (MIL-PRF-13830B) |
| LIDT |
> 0.3 J/cm2, 193 nm, 10 ns, 30 Hz > 38.18 J/cm2, 532 nm, 10 ns, 100 Hz > 168 J/cm2, 1064 nm, 10 ns, 100 Hz |
Company-wide capability spans 200–2200 nm
Measured performance
Real data from our metrology lab in Vilnius. Every dataset is viewable as numbers and downloadable.
Reflectivity
970 – 1090 nm · AOI 0° · measured
Group delay dispersion
970 – 1090 nm · AOI 0° · measured
LIDT
Absorption
In-stock at OPTOSHOP
1-3 days delivery from stock, 400+ products available
SuperHero power
SPHERICAL MIRRORS | PCV-R500-UVFS-50.8-ET9.52-UBBHR38
CAM95-1030-0
€ -
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
SPHERICAL MIRRORS | PCV-R2400-UVFS-25.4-ET6.35-ULLM8SHL
CAM95-1030-0
€ -
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
SPHERICAL MIRRORS | PCV-R800-UVFS-25.4-ET6.35-LLM188
CAM95-1030-0
€ 375
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
SPHERICAL MIRRORS | PCV-R1000-IRFS-12.7-ET6.35-LLM178
CAM95-1030-0
€ 110
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
Used in published research
OPTOMAN has a number of plano-concave and plano-convex lenses in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available lensesOPTOMAN has a number of 1/2”, 1”, 2” and 3” plano substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available spherical substrates Available plano substratesLet’s get your quotation started.
Our AI assistant will ask the same technical questions our engineers would normally ask by email, so we can understand your requirements from the start and prepare your quotation faster.
