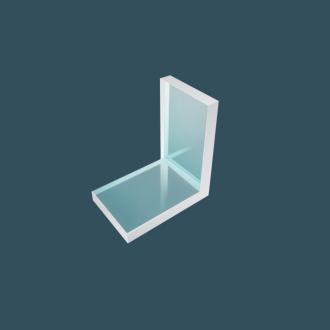

Retroreflectors
Precision optics that return incoming light straight back to its source, regardless of angle of incidence. Built as right-angle assemblies with IBS-coated mirror surfaces and OPTOMAN’s own in-house alignment process, they deliver 10–30 arcsec angular accuracy and near-zero absorption for high LIDT – reliable for laser tracking, surveying and high-power ultrafast systems, and fully customizable on geometry, coating and mounting to fit your application.
Capabilities
| Coating technology | Ion Beam Sputtering (IBS) |
|---|---|
| Spectral range | 193 – 5000 nm |
| Reflectivity | > 99.9% |
| Material | UVFS |
| Dimensions | 10x10 – 100x100 mm |
| Surface flatness | Up to <λ/20 |
| Surface quality | Up to 10-5 S-D over CA (MIL-PRF-13830B) |
| 90 deg Angle Tolerance | 10 – 30 arcsec |
Company-wide capability spans 200–2200 nm
Measured performance
Real data from our metrology lab in Vilnius. Every dataset is viewable as numbers and downloadable.
Reflectivity
970 – 1090 nm · AOI 0° · measured
Group delay dispersion
970 – 1090 nm · AOI 0° · measured
LIDT
Absorption
In-stock at OPTOSHOP
1-3 days delivery from stock, 400+ products available
SuperHero power

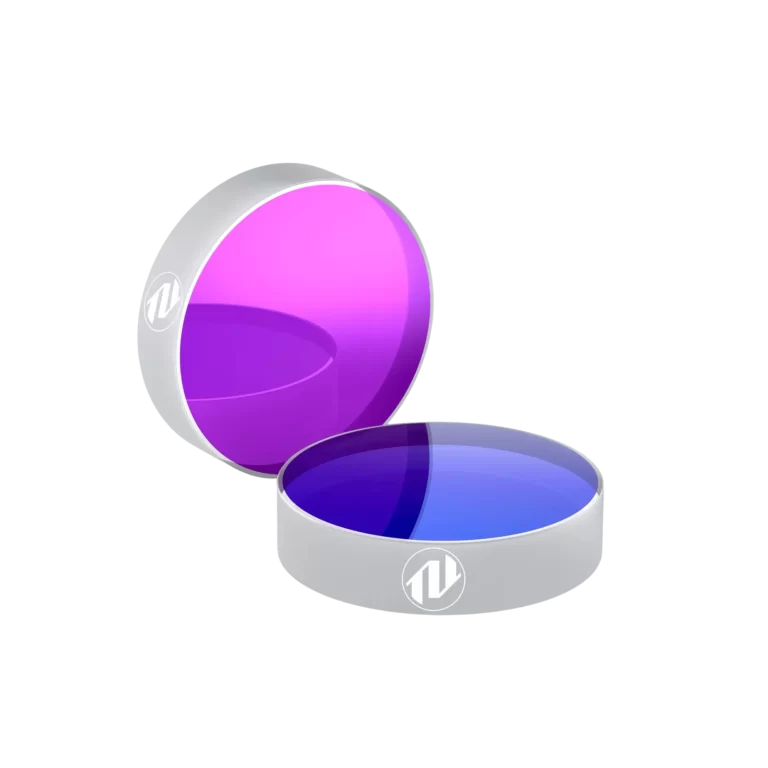

ULTRAFAST LASER MIRRORS | PP-UVFS-25.4-6.35-ULLM5 (SCC)
CAM95-1030-0
€ 125
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
ULTRAFAST LASER MIRRORS | PP-UVFS-25.4-6.35-ULLM5SHL
CAM95-1030-0
$ 229.85
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
ULTRAFAST LASER MIRRORS | PP-UVFS-12.7-6.35-ULLM3
CAM95-1030-0
€ 85
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
ULTRAFAST LASER MIRRORS | PP-UVFS-25.4-6.35-UBBHR7
CAM95-1030-0
€ 160
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
ULTRAFAST LASER MIRRORS | PP-UVFS-25.4-6.35-LLM267EL
CAM95-1030-0
€ 145
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LASER MIRRORS | PP-UVFS-25.4-6.35-LLM395
CAM95-1030-0
$188.75
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LASER MIRRORS | PP-UVFS-25.4-6.35-LLM417
CAM95-1030-0
€ 145
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LASER MIRRORS | PP-UVFS-25.4-6.35-LLM290
CAM95-1030-0
€ 180
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
Used in published research

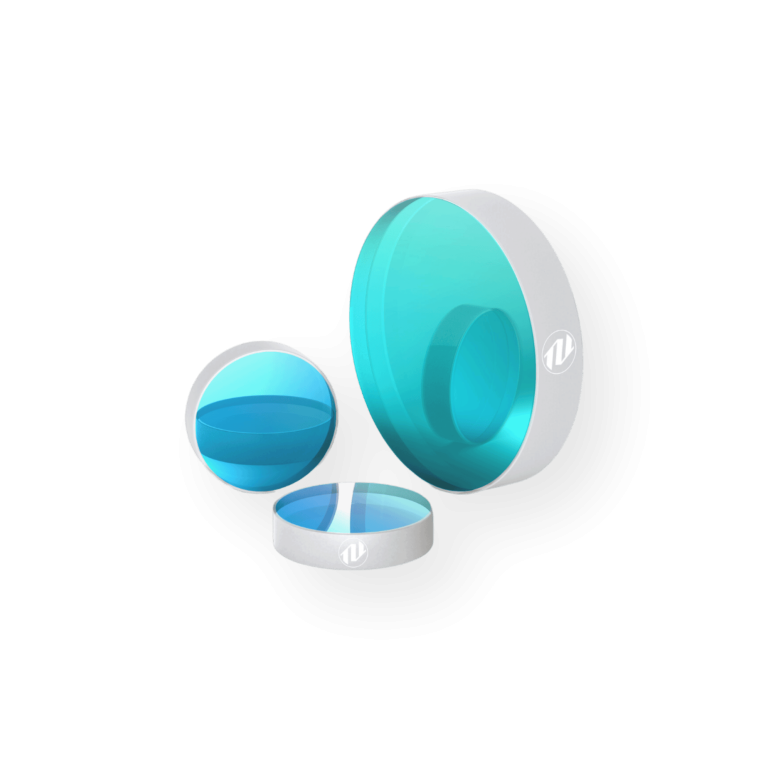

OPTOMAN has a number of plano-concave and plano-convex lenses in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available lensesOPTOMAN has a number of 1/2”, 1”, 2” and 3” plano substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available spherical substrates Available plano substratesLet’s get your quotation started.
Our AI assistant will ask the same technical questions our engineers would normally ask by email, so we can understand your requirements from the start and prepare your quotation faster.
- 1 Specifications
- 2 Laser Parameters
- 3 Contact
Thank you
for your request
We will contact you as soon as possible
FAQs
How can IBS-coated retroreflectors benefit my Business?
Integrating IBS-coated retroreflectors into your optical systems provides a significant competitive advantage by enhancing both the long-term reliability and the overall efficiency of your hardware. The Ion Beam Sputtering (IBS) process creates exceptionally dense, high-purity films that are far more resistant to environmental degradation, humidity, and physical wear than traditional evaporative coatings. This durability translates directly into a lower total cost of ownership, as it minimizes the need for frequent recalibration or component replacement. Furthermore, the superior reflectivity and ultra-low scatter of these coatings ensure that your systems maintain maximum signal integrity, allowing your business to deliver high-precision results even in the most demanding industrial environments.
Can these retroreflectors handle high-power ultrafast laser systems?
Absolutely. Our retroreflectors are specifically designed to meet the rigorous demands of high-power and ultrafast laser applications. Our IBS coatings provide one of the highest Laser Induced Damage Thresholds (LIDT) available in the industry. Because these coatings have near-zero absorption, they prevent the thermal lensing and surface pitting that often lead to system failure in high-energy setups, making them an ideal solution for advanced research and precision manufacturing.
How can I be sure these retroreflectors will fit my application?
OPTOMAN collaborates closely with customers to ensure that each optical component fits the target system’s polarization, power, and wavelength requirements. Whether your priority is precision, robustness, or cost-efficiency, our engineers help optimize optical parameters to match your needs. We assist you in selecting the ideal geometry, whether that is a right-angle retroreflector for simple axis alignment or a hollow corner cube for universal beam return. Our engineering team can calibrate the dihedral error tolerances to meet your precision needs and tailor the IBS coating to optimize performance at your specific operating wavelengths.
Does OPTOMAN provide optics or only coating service?
Both. 80% of total OPTOMAN revenue comes from complete products, while 20% is generated by providing coating services on customer-supplied substrates. OPTOMAN responsibly oversees the supplier network for reliable substrates and, if needed, can offer a completely European supply chain.
