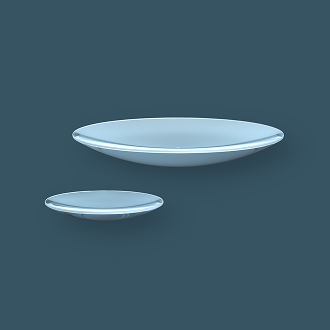

AR-coated lenses
IBS-coated lenses that focus collimated laser beams with high transmittance and low absorption, keeping reflection losses and thermal effects to a minimum. Available as plano-convex (PCX) for focusing to a spot or plano-concave (PCV) for beam expansion, across a wide range of focal lengths and radii of curvature to match your target wavelength – precision and power efficiency without the thermal lensing.
Capabilities
| Coating technology | Ion Beam Sputtering (IBS) |
|---|---|
| Spectral range | 193 – 5000 nm |
| Transmittance | > 99.9% |
| Substrate diameter | 3 – 500 mm |
| TWD | Up to λ/20 |
| Surface quality | Up to 10-5 S-D over CA (MIL-PRF-13830B) |
| GDD | <20 fs2 |
| LIDT |
> 0.18 J/cm2, 515 nm, 190 fs, 300 kHz > 0.5 J/cm2, 1030 nm, 500 fs, 10 kHz >0.39 J/cm2, 343 nm, 1 ps, 1000 Hz |
Company-wide capability spans 200–2200 nm
Measured performance
Real data from our metrology lab in Vilnius. Every dataset is viewable as numbers and downloadable.
Reflectivity
970 – 1090 nm · AOI 0° · measured
Group delay dispersion
970 – 1090 nm · AOI 0° · measured
LIDT
Absorption
In-stock at OPTOSHOP
1-3 days delivery from stock, 400+ products available
SuperHero power
LENSES | PCX-F100-UVFS-25.4-ET2.0-AR548-AR548
CAM95-1030-0
€ 115
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LENSES | PCX-F100-UVFS-25.4-ET2.0-AR784-AR784
CAM95-1030-0
€ 120
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LENSES | PCX-F100-UVFS-25.4-ET2.0-AR909-AR909
CAM95-1030-0
€ 80
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LENSES | PCX-F80-UVFS-20.0-ET3.0-AR829-AR829
CAM95-1030-0
€ 105
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
LENSES | PCX-R22.0-UVFS-22.0-CT6.0-AR653-AR653
CAM95-1030-0
$168
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
Used in published research
OPTOMAN has a number of plano-concave and plano-convex lenses in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available lensesOPTOMAN has a number of 1/2”, 1”, 2” and 3” plano substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Available spherical substrates Available plano substratesLet’s get your quotation started.
Our AI assistant will ask the same technical questions our engineers would normally ask by email, so we can understand your requirements from the start and prepare your quotation faster.
- 1 Specifications
- 2 Laser Parameters
- 3 Contact
Thank you
for your request
We will contact you as soon as possible
FAQs
How can IBS-coated thin anti-reflective lenses benefit my Business?
IBS-coated UV anti-reflective optics, including lenses and windows, are specifically designed to overcome the unique challenges faced in UV laser applications. By focusing on optimized coating technology, OPTOMAN ensures that UV lenses and windows offer enhanced lifetimes, higher Laser-Induced Damage Threshold (LIDT), low surface roughness, and high batch-to-batch consistency. This results in longer operational life, reducing the need for frequent replacements and ultimately lowering the Total Cost of Ownership.
At OPTOMAN, our expert coating engineers ensure that each UV anti-reflective coating is finely tuned for your specific needs, providing excellent spectral performance and long-lasting solutions for the most demanding laser systems.
At OPTOMAN, our experienced engineers ensure each mirror is finely tuned for your specific application, providing reliable, high-performance laser optics for ultrafast multiwavelength laser systems.
How can I be sure that these laser optics will fit my Business needs?
OPTOMAN digs deep into each application, providing highly customized and application-optimized solutions that will fit your business needs.
Together, we will be able to set the priorities that are most important for your application and needs, whether it is reaching fundamental limitations, proving the concept, or making a well-balanced industrial high runner. We keep an open discussion about the main price drivers and help customers optimize BOM costs while maintaining the highest quality level.
Is it possible to test the optics and how scalable is the production?
Yes. Based on the customer’s presented business case, OPTOMAN, with its R&D-driven attitude and collaborative approach, can design, develop, and manufacture products for testing purposes and present a plan for serial production. Different-size IBS coating chambers are very handy in this case because small-scale production can be easily transferred to our giant IBS machine – Albert (the atom smasher), where we can coat large optics or 400-500 units of 1“ laser optics in a single coating run, ensuring high uniformity, meaning that all mirrors will work the same making your laser systems highly repeatable and reliable too.
Moreover, our in-stock optics marketplace, OPTOSHOP, features over 400 different laser optics made with love by OPTOMAN. These optics can be provided for testing directly from stock and delivered in 1-3 business days. After successful tests, OPTOMAN can present the most optimal production plan matching your business needs.
Does OPTOMAN provide optics or only coating service?
Both. 80% of total OPTOMAN revenue comes from complete products, while 20% is generated by providing coating services on customer-supplied substrates. OPTOMAN responsibly oversees the supplier network for reliable substrates and, if needed, can offer a completely European supply chain.
Does OPTOMAN have available substrates ready to coat?
Yes. OPTOMAN has a number of flat substrates, plano-concave and plano-convex lenses, and spherical mirror substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
